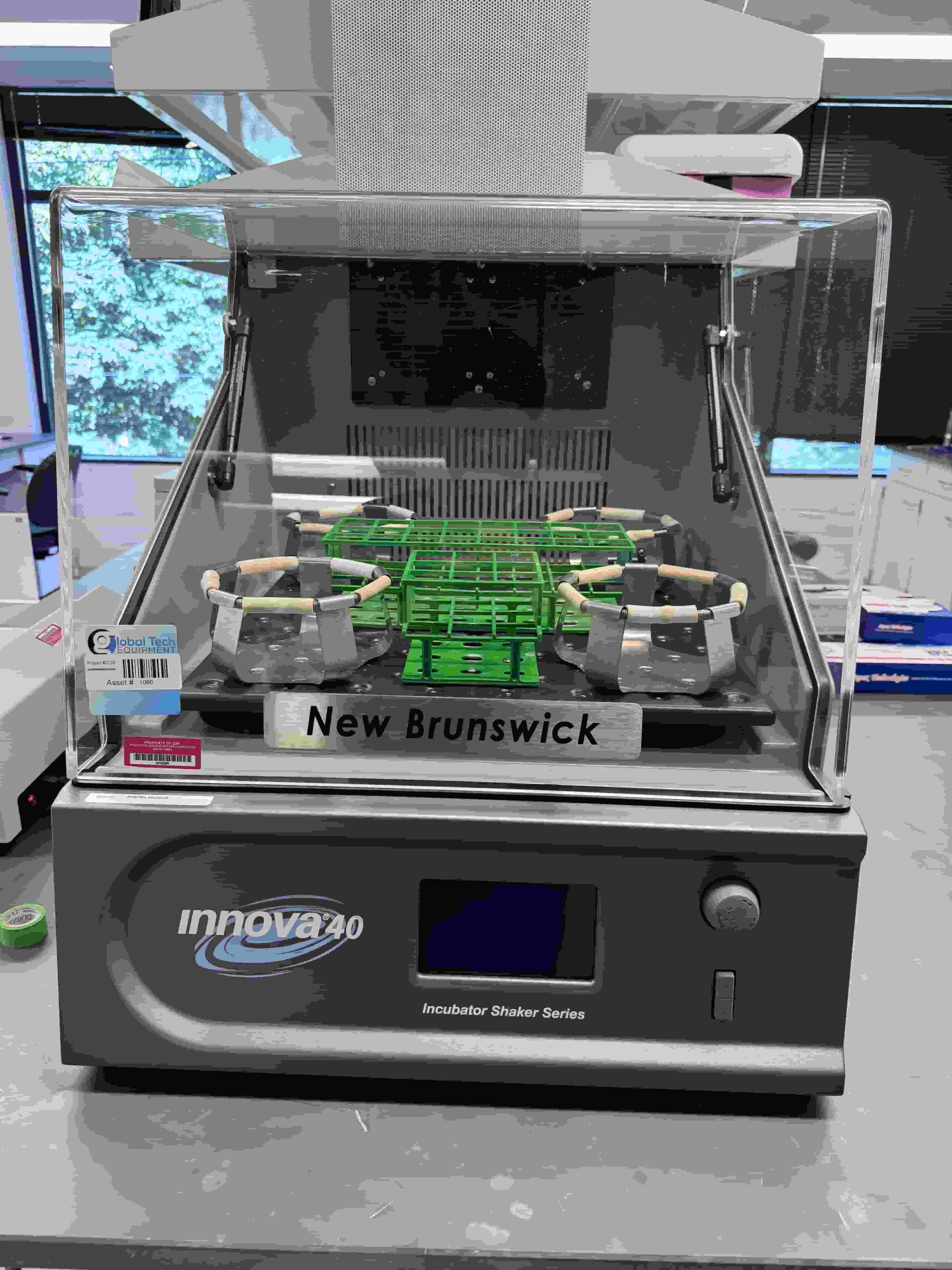

New Brunswick Innova 40 Incubator Shaker: A Reliable Cornerstone for Cell Culture and Microbial Fermentation

In the vast fields of molecular biology, microbiology, biopharmaceuticals, and basic life science research, there is a frequent need for the aerated and constant-temperature cultivation of bacteria, yeast, fungi, or animal cells. Here, the incubator shaker becomes an indispensable core instrument. It skillfully integrates precise temperature control, uniform oscillatory mixing, and the maintenance of a sterile environment, providing an ideal platform for cell growth and biological reactions. Among the many brands and models, the New Brunswick Innova 40 is renowned as a "classic workhorse" in the laboratory, celebrated for its long history, robust design, and exceptional performance, particularly suited for small to medium throughput requirements.

1. Product Positioning and Core Value

New Brunswick (NB, now part of the Eppendorf Group) is a pioneer and global leader in bioprocess control. The Innova 40 series is its classic line of benchtop incubator shakers for small to medium scales, with a capacity ranging from approximately 4 to 40 liters (depending on flask configuration). Its core value lies in:

• Reliability First: The Innova 40 is famous for its extremely sturdy mechanical construction, stable temperature control, and long service life, capable of handling uninterrupted 24/7 operation, making it a reliable choice for long-term fermentation or protein expression experiments.

• Reproducibility and Consistency: Excellent control systems ensure high reproducibility between different experimental batches, which is crucial for process development and optimization.

• User-Friendly: An intuitive control interface and simple operational procedures make it easy to use and maintain.

2. Core System Components and Technical Features

1. Advanced Temperature Control System

   • Uniformity and Stability: The Innova 40 typically uses a directly heated chamber (often with a stainless steel interior) and a powerful air circulation system to ensure highly uniform (often within ±0.5°C or better) and stable temperature throughout the chamber. This is vital for temperature-sensitive cell cultures.

   • Wide Temperature Range: It usually offers a broad range from below ambient temperature (requires refrigeration option, e.g., Innova 40R) up to 60°C or higher, meeting various needs from low-temperature preservation to high-temperature fermentation.

   • Precise Control: Utilizes microprocessor-controlled PID (Proportional-Integral-Derivative) algorithms for rapid response to temperature changes and accurate maintenance of the setpoint.

2. Efficient and Smooth Orbital Mixing System

   • Infinite Speed Adjustment & Precise Control: The speed range typically spans from several dozen rpm to over 400 rpm, allowing users stepless adjustment. Precise speed control ensures consistent oxygen transfer rate (OTR) and mixing efficiency.

   • Smooth, Quiet Operation: High-quality brushless DC motors and precise balance design enable smooth, quiet, and low-vibration operation even at maximum speed, minimizing disturbance to samples and the lab environment.

   • Interchangeable Platforms: Standard configurations include clamps for various sizes of Erlenmeyer flasks, cell culture flasks, and even test tube racks. The orbital diameter (throw) is typically fixed (e.g., 1 inch or 25 mm), a key parameter affecting mixing efficiency.

3. User-Centric Design and Safety Features

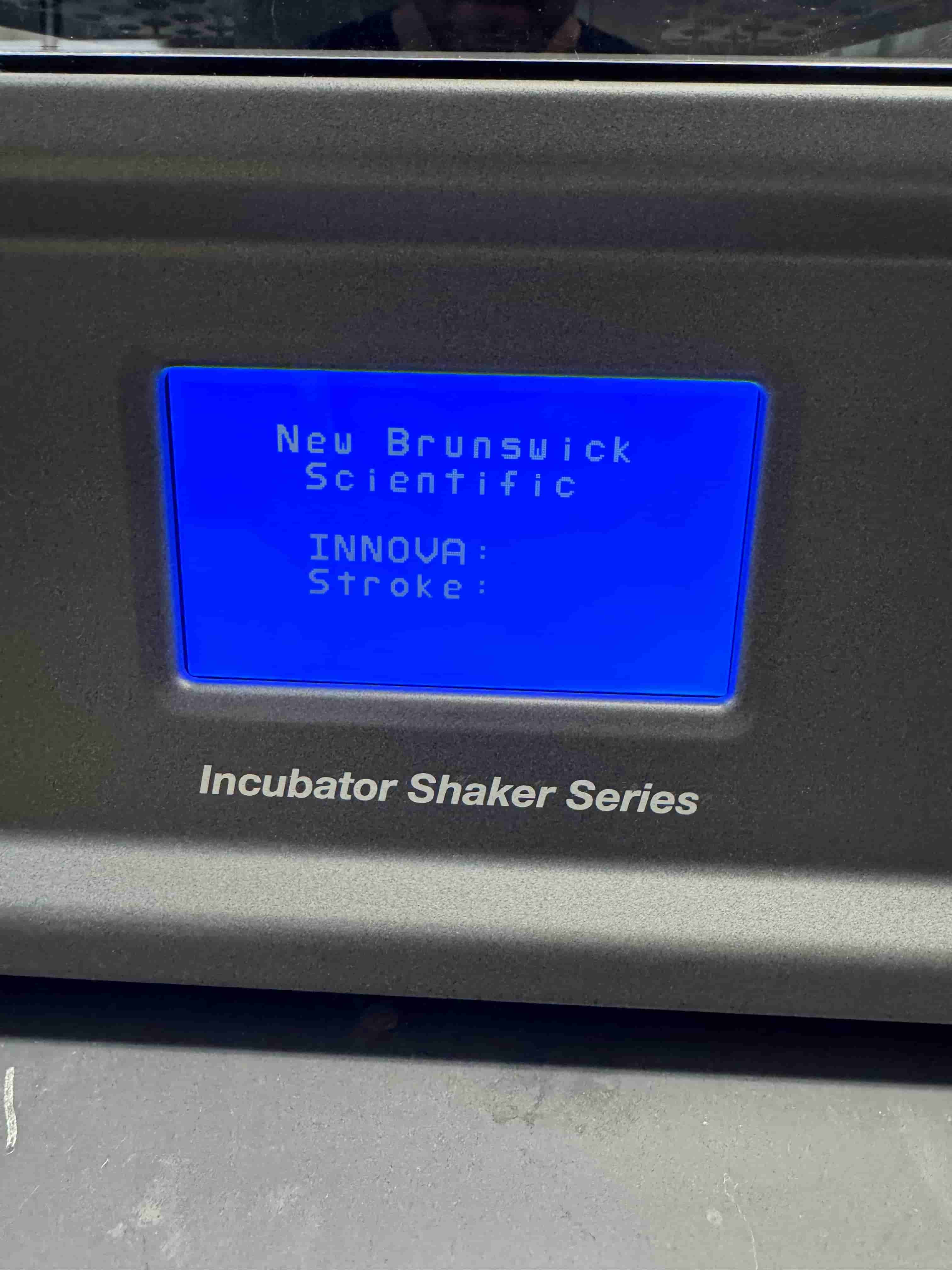

   • Intuitive Control Interface: Earlier Innova 40 models might use knobs and digital displays, while newer versions often feature backlit LCD screens and intuitive buttons or touchscreens for easy setting and monitoring of temperature, speed, time, etc.

   • Programmable Operation: Supports multi-segment programming, allowing automatic changes in temperature or speed within a single run to simulate complex growth curves.

   • Comprehensive Safety Protections:

     • Independent Over-Temperature Protection: Features an independent overtemperature protector that automatically cuts off heating if the primary control fails, preventing sample loss.

     • Door Lock & Alarms: Includes door-open detection and alarms for speed or temperature deviations, ensuring operational safety.

     • Robust Motor Protection: The motor has overload and stall protection, ensuring long-term operational reliability.

3. Typical Applications

The versatility of the Innova 40 makes it vital in numerous fields:

• Microbial Fermentation: Large-scale cultivation of E. coli, yeast, etc., for recombinant protein expression or plasmid DNA preparation.

• Bacterial Culture: Routine bacterial amplification for molecular biology and microbiology experiments.

• Eukaryotic Cell Culture: Suspension culture of insect cells or mammalian cells for viral vector production or monoclonal antibody expression.

• Enzymatic Reaction Studies: Conducting enzyme kinetics studies at constant temperatures.

• Solubility Studies: Testing compound solubility and stability in drug discovery and development.

4. Summary and Brand Heritage

The New Brunswick Innova 40 Incubator Shaker is more than just a piece of equipment; it is a symbol of laboratory productivity and reliability. It inherits decades of technical expertise and stringent quality standards from the New Brunswick brand. While the market today offers newer models with enhanced connectivity and higher throughput, the Innova 40 remains a core cultivation tool in countless labs worldwide due to its enduring quality, exceptional performance stability, and relatively low maintenance costs.

For researchers seeking an incubator shaker they can "set and forget," one that provides a solid foundation for critical experiments, the New Brunswick Innova 40 is undoubtedly a time-tested, classic choice. It embodies a "craftsman's spirit" in laboratory instrumentation and is a trusted partner for those who prioritize data reliability and experimental success.
