Bio-Rad C1000 Base + 48/48 Faast Block & 96-Well Fast Block: 600-Word Professional Introduction

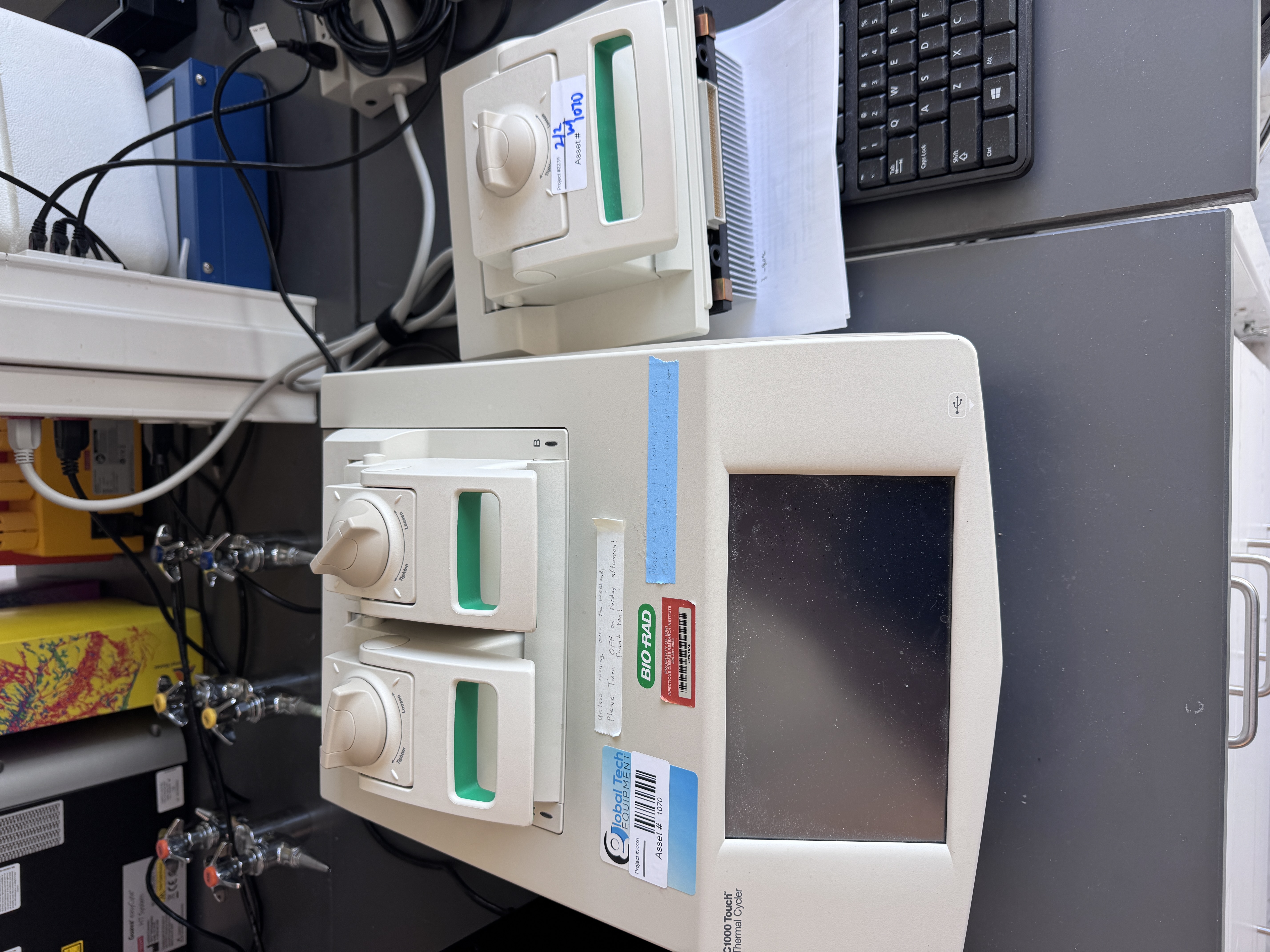

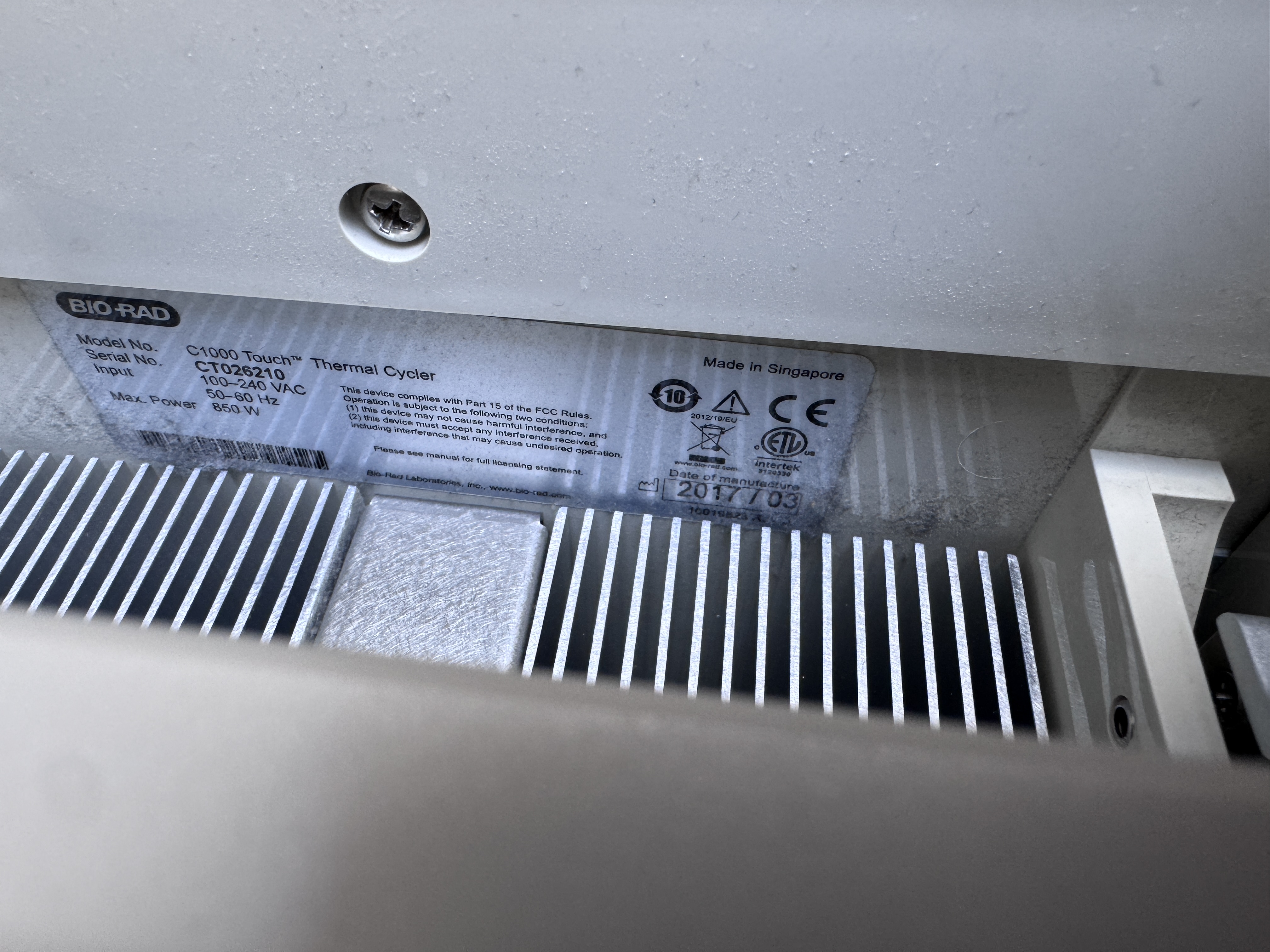

The Bio-Rad C1000 Touch Thermal Cycler is a high-performance, modular PCR platform renowned for its exceptional flexibility and reliability, making it an ideal choice for molecular biology laboratories. The system features an innovative modular design, allowing users to quickly interchange different heating blocks based on experimental requirements, enabling an efficient "one-instrument, multiple-uses" operational model. The C1000 Touch base unit is equipped with an intuitive color touchscreen interface, facilitating easy programming and control of experimental protocols without connecting to a computer. Its precise temperature control system ensures excellent reproducibility of experimental results.

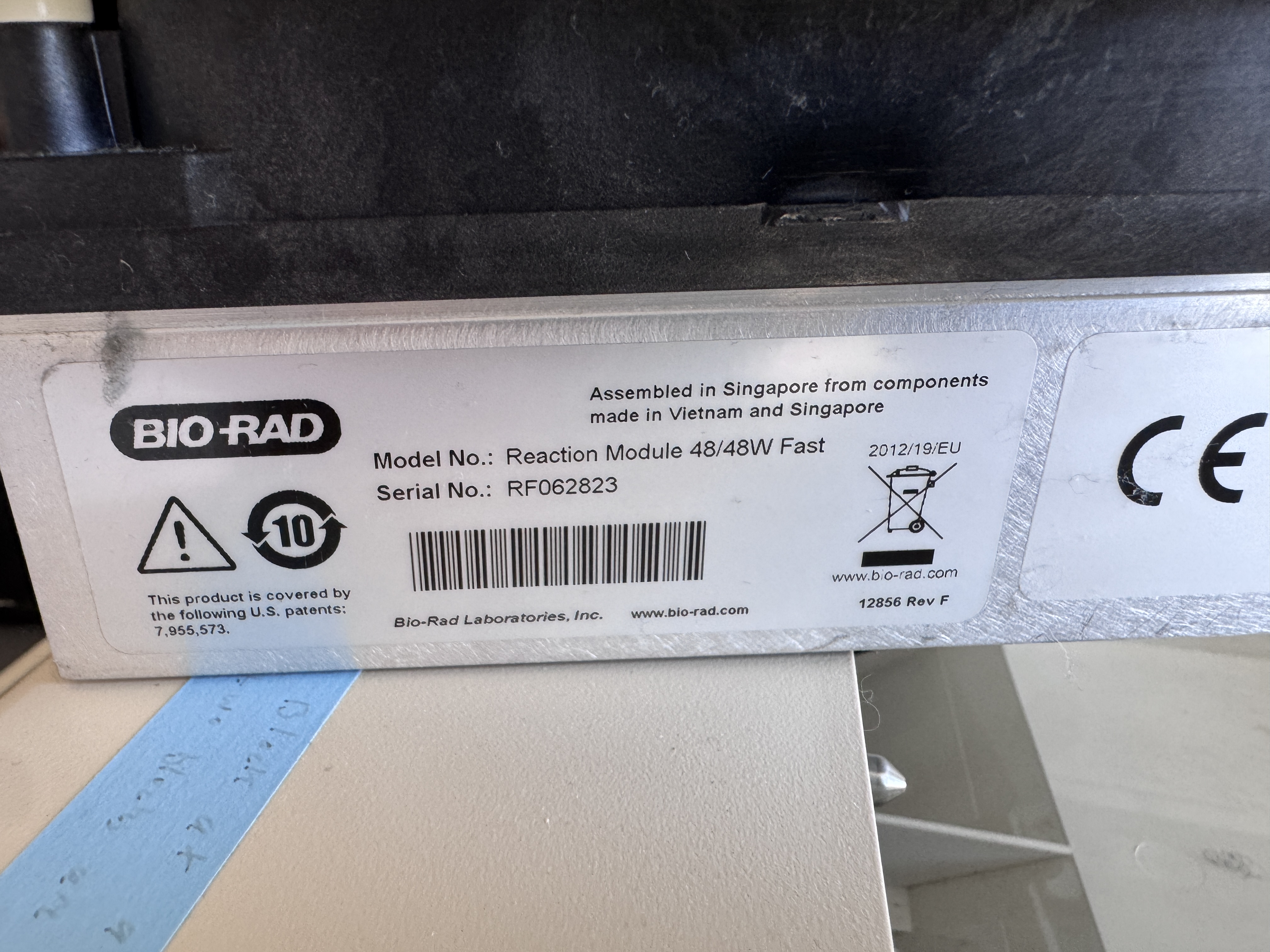

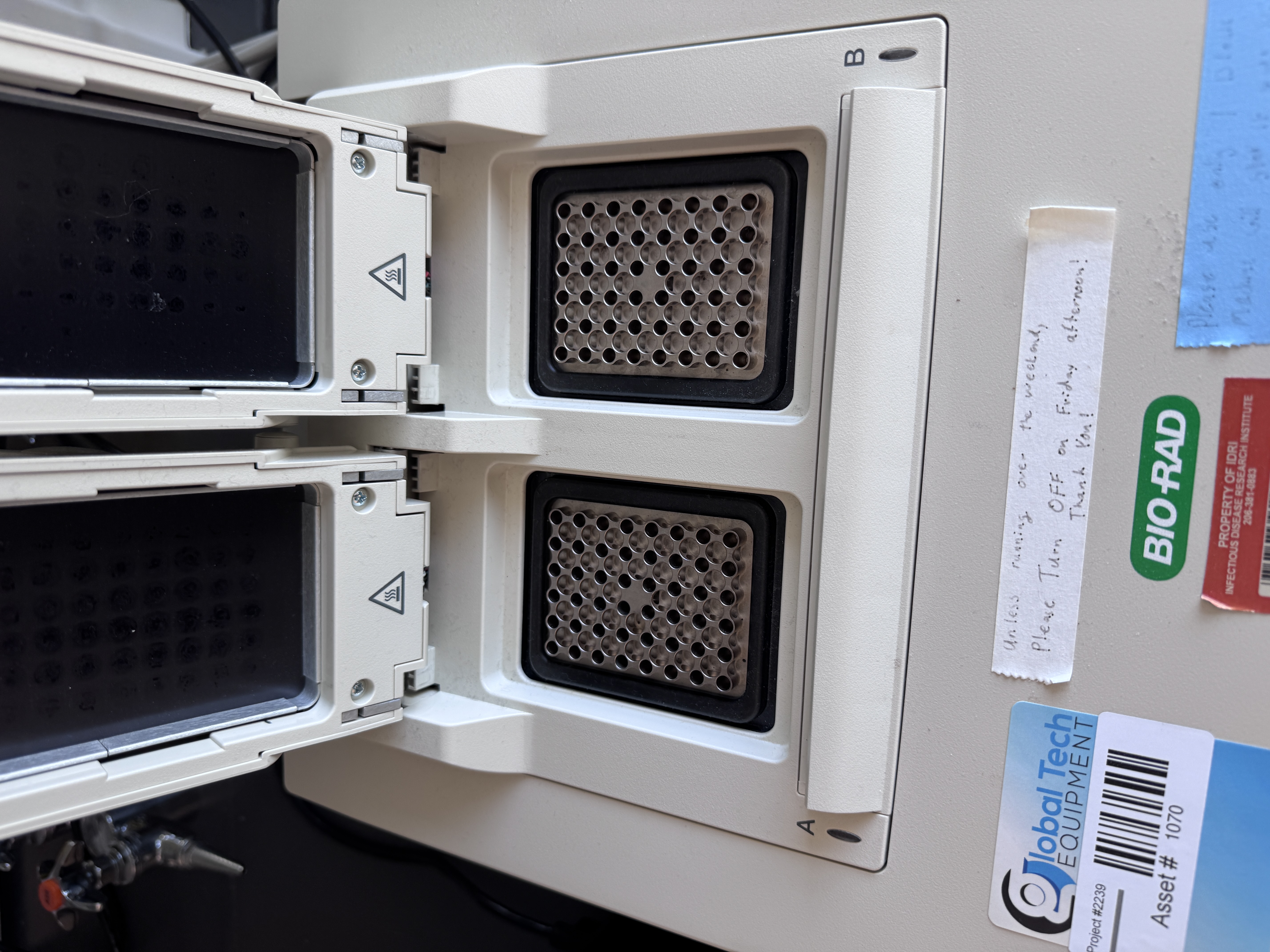

The 48/48 Faast Block is one of the core highlights of this system. It utilizes a unique dual 48-well independent design, enabling not only ultra-fast heating and cooling rates (up to 6°C/second) but also allowing two different PCR programs to run simultaneously. This distinctive design significantly enhances experimental efficiency and is particularly suitable for applications requiring rapid detection and high-throughput screening, such as clinical pathogen screening and genotyping. The independent dual-zone design also provides experimental redundancy, effectively preventing the loss of entire sample batches due to single experiment failure.

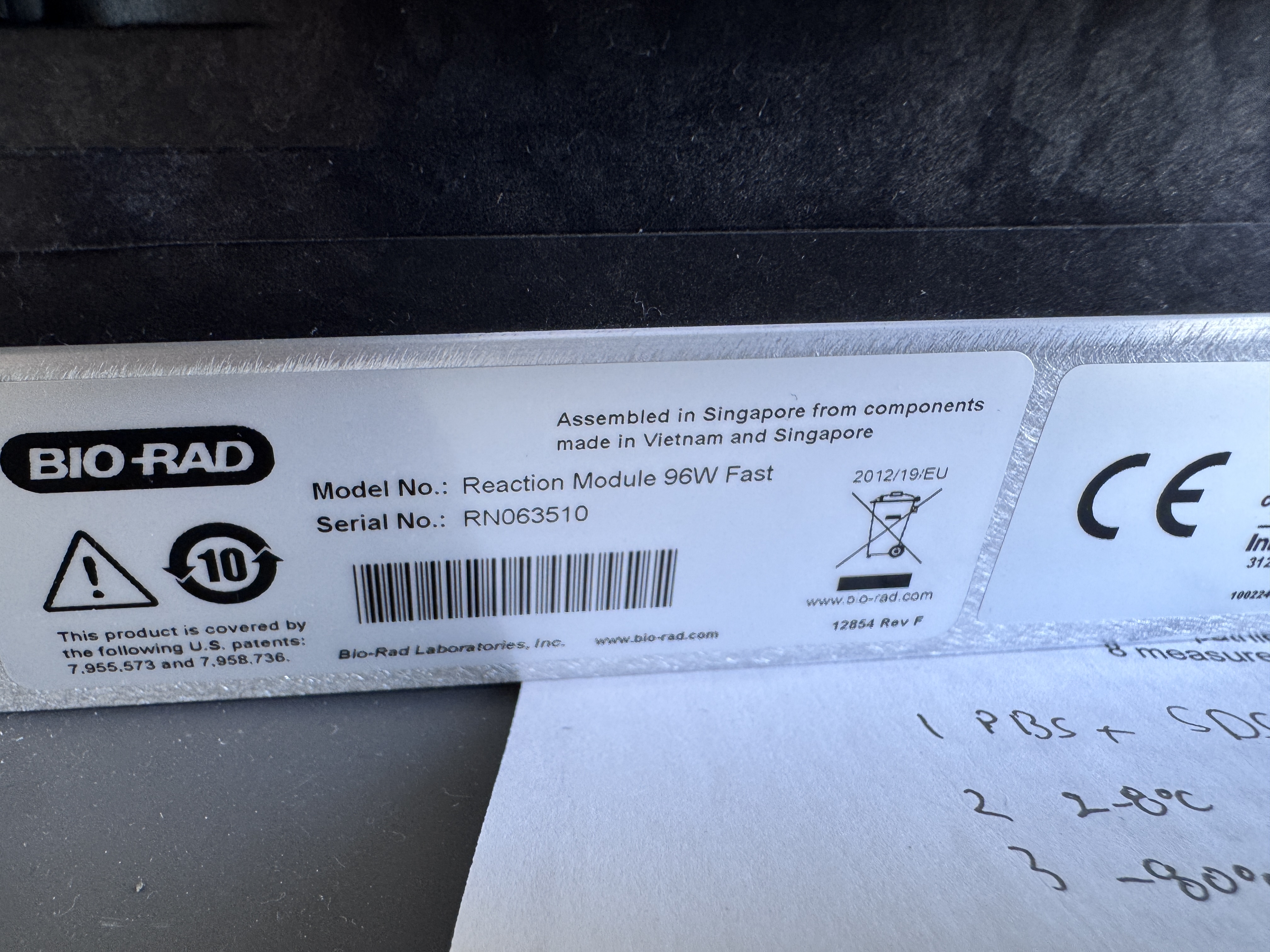

The 96-well fast block offers outstanding well-to-well temperature uniformity (±0.3°C), ensuring the accuracy and reliability of experimental data. This block supports standard 96-well plate formats and achieves heating/cooling rates of up to 4°C/second, ideally balancing throughput and speed requirements. It is perfectly suited for routine molecular biology experiments such as gene cloning, plasmid construction, and expression analysis.

By pairing these two blocks with the C1000 base unit, laboratories can achieve seamless switching between conventional PCR and ultra-fast PCR on a single platform. Researchers can flexibly allocate block usage based on experimental priorities: time-sensitive projects can utilize the 48/48 Faast Block for rapid detection, while basic research requiring high reproducibility can employ the 96-well fast block. This configuration not only saves equipment procurement costs but also improves laboratory space utilization.

It is worth emphasizing that the system also supports gradient PCR functionality, allowing users to optimize different annealing temperatures on the same plate. The intelligent automatic heat lid pressure adjustment feature accommodates various consumable specifications, further enhancing operational convenience. Additionally, the blocks' thermoelectric cooling technology ensures long-term operational stability, while the intuitive software interface simplifies method setup and protocol editing.

In summary, the Bio-Rad C1000 Touch configured with these two blocks provides a comprehensive PCR solution for modern molecular biology laboratories. It not only meets diverse needs ranging from basic research to clinical detection but its modular design also reserves ample space for future laboratory technology upgrades, making it an ideal platform for achieving efficient and flexible experimental operations.
