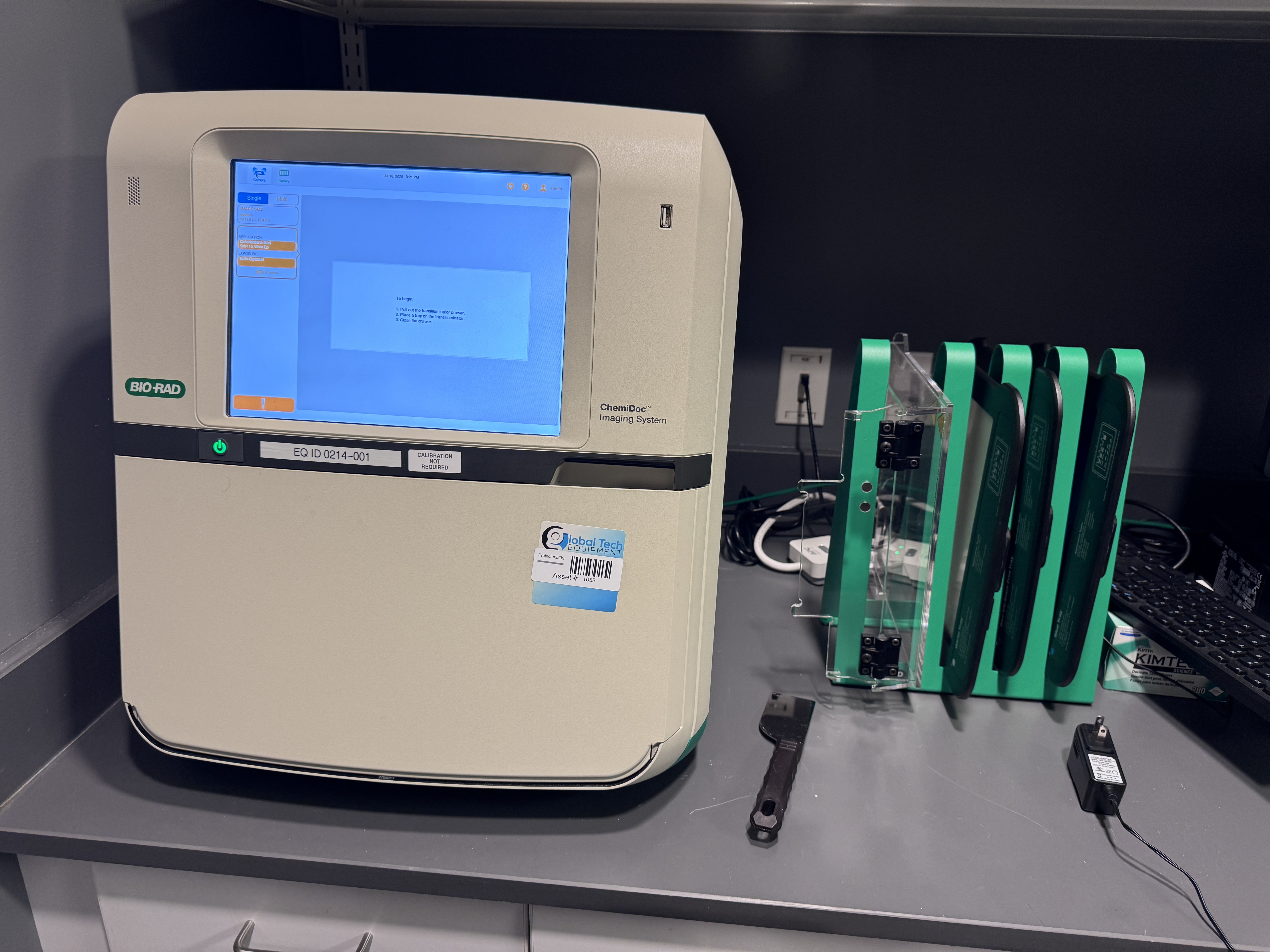

Bio-Rad ChemiDoc Imaging System: A Comprehensive Introduction

The Bio-Rad ChemiDoc Imaging System is a state-of-the-art, versatile imaging workstation designed for advanced molecular biology and proteomics research. It integrates multiple imaging modalities into a single platform, enabling high-sensitivity detection and quantification of proteins, nucleic acids, and other biomolecules. With its robust hardware and intelligent software, the ChemiDoc system has become an indispensable tool in modern laboratories worldwide.

Key Features and Capabilities

1. Multi-Modal Imaging

   The system supports a wide range of imaging modes, including:

   • Chemiluminescence: Ideal for Western blot detection with HRP or AP substrates, offering femtogram-level sensitivity.

   • Fluorescence: Equipped with blue, green, and red LED excitation sources (e.g., 460–490 nm, 520–545 nm, 625–650 nm), compatible with dyes like Alexa Fluor, Cy, and DyLight.

   • Colorimetric and Stain-Free Imaging: Enables rapid visualization of Coomassie- or silver-stained gels, plus Stain-Free technology for label-free protein quantification.

   • UV and White Light Transillumination: For nucleic acid gels (e.g., ethidium bromide or SYBR Green staining).

2. High-Performance Hardware

   • Cooled CCD Camera: Features up to 6.1 megapixels, with a dynamic range >4.8 OD and low dark noise (<0.002 e⁻/pixel/s), ensuring precise detection of weak and strong signals without saturation.

   • Automated Optics: Motorized lenses, filters, and focus adjustments enable hands-free operation and reproducibility.

   • Modular Design: Users can upgrade with additional light sources or filters (e.g., IR channels for near-infrared dyes) to meet evolving research needs.

3. Intelligent Software Integration

   The Image Lab Software provides a seamless workflow from image acquisition to analysis:

   • Automated Protocols: One-click settings for common applications (e.g., Western blots, DNA gels).

   • Quantification Tools: Includes band density analysis, molecular weight calculation, and background subtraction.

   • Stain-Free Technology: Allows instant protein normalization without traditional staining, reducing time and reagent use.

   • Data Export: Supports export in multiple formats (TIFF, JPEG, PDF) and compliance with FDA 21 CFR Part 11 for regulated environments.

Applications

• Western Blotting: Chemiluminescence for high-sensitivity protein detection; fluorescence for multiplexed target analysis (e.g., phosphorylated and total proteins).

• Nucleic Acid Analysis: UV imaging for DNA/RNA gels; capillary electrophoresis validation.

• Gel Documentation: Stain-Free imaging for pre- and post-transfer gel quality control.

• High-Throughput Screening: Adaptable for microplate readers (e.g., In-Cell Western assays).

Advantages Over Traditional Methods

• Efficiency: Replaces X-ray film with digital accuracy, eliminating darkroom work and reducing exposure times.

• Quantitative Precision: 16-bit imaging ensures linear data capture for reliable densitometry.

• Flexibility: From basic gel documentation to complex multiplex fluorescence, the system grows with research needs.

Technical Specifications (Representative Models)

• Camera: Cooled CCD, ≥4.5 μm pixel size, SNR >56 dB.

• Light Sources: UV transilluminator (302 nm), white/blue LED epi-illumination, optional IR.

• Computer: Integrated PC with touchscreen or external workstation compatibility.

Conclusion

The Bio-Rad ChemiDoc Imaging System combines versatility, sensitivity, and user-friendly design to accelerate scientific discovery. Its ability to handle diverse imaging tasks—from routine gel documentation to advanced quantitative assays—makes it a cornerstone of life science research. For detailed specifications or application notes, refer to Bio-Rad’s official resources or consult with authorized distributors.
