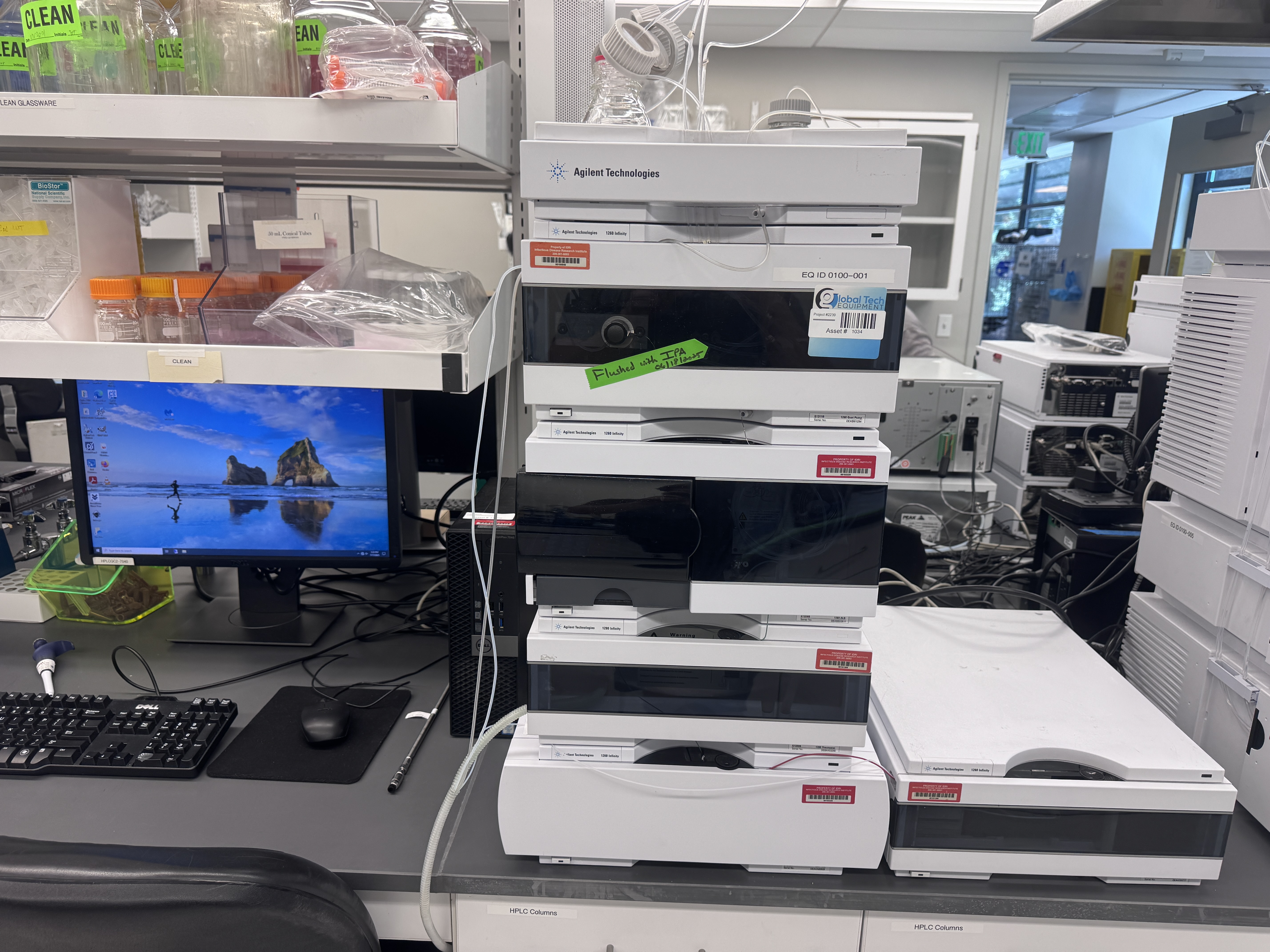

Agilent 1260 Infinity HPLC System: A Comprehensive Overview with G1311B Quat Pump, G1329B Autosampler, G1330B Thermostat, and G1316A Column Compartment

Introduction

The Agilent 1260 Infinity HPLC System represents a benchmark in high-performance liquid chromatography, renowned for its reliability, precision, and modular flexibility. Configured with the G1311B Quat Pump, G1329B Autosampler, G1330B Thermostat, and G1316A Column Compartment, this system forms a robust analytical platform capable of addressing both routine testing and complex method development needs. Below is a detailed analysis of its technical features and application value.

1. Technical Advantages of Core Modules

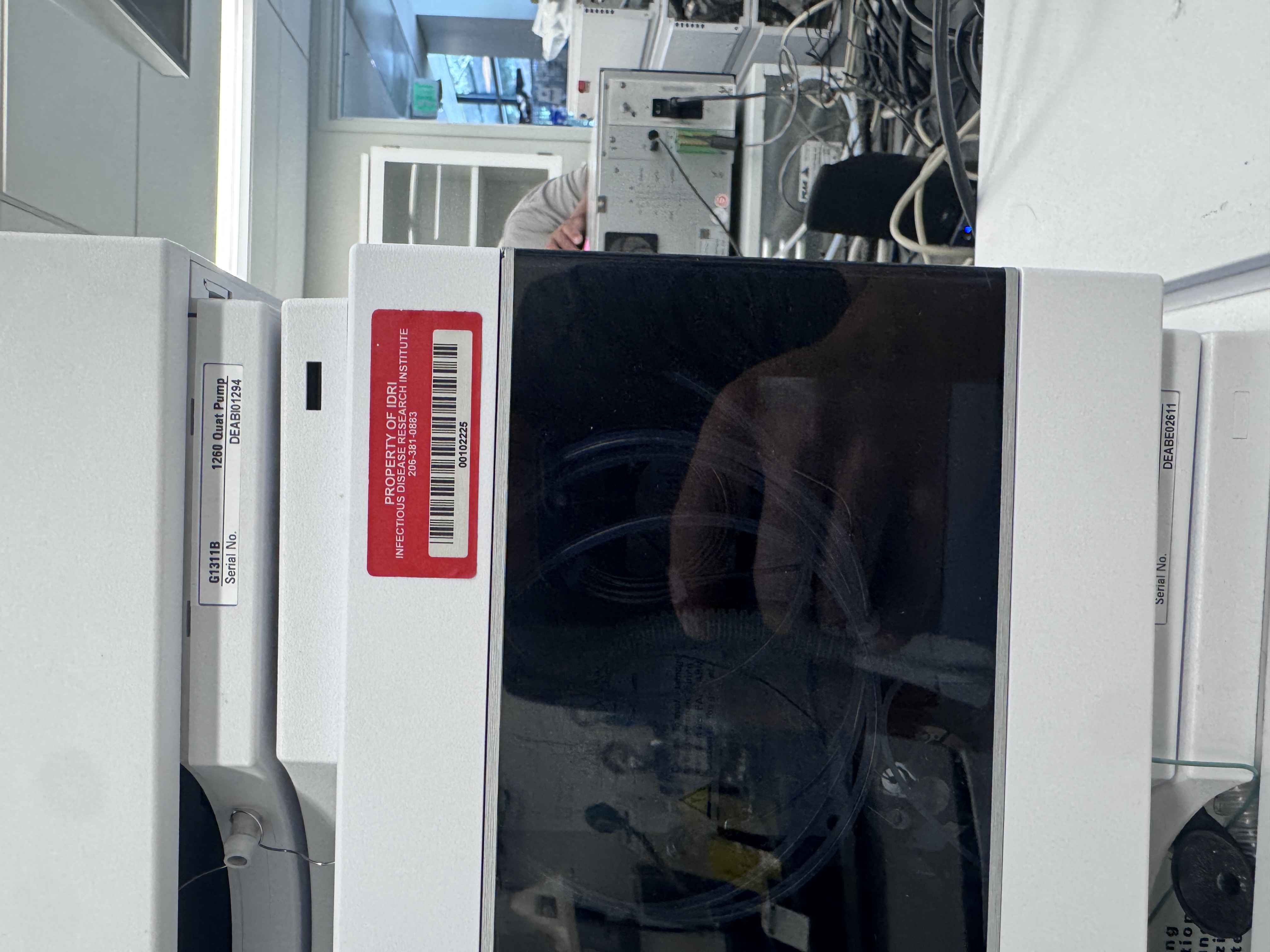

1.1 G1311B 1260 Quat Pump: The Precision "Heart" of the System

As the core solvent delivery unit, the G1311B Quat Pump employs a dual-piston serial compensation design, maintaining flow rate accuracy of ±0.075% at pressures up to 400 bar. It supports four-channel solvent mixing for pulse-free gradient elution, significantly reducing baseline noise. Its intelligent compression compensation feature automatically adjusts for differences in solvent compressibility, ensuring exceptional retention time reproducibility even at low flow rates (e.g., 0.1 mL/min), providing stable performance for complex separations.

1.2 G1329B 1260 Autosampler: The High-Precision "Executor" for High-Throughput Analysis

This autosampler utilizes a patented needle-in-needle injection design, handling sample volumes from 0.1 to 100 µL with an injection precision RSD < 0.25%. Integrated tray temperature control (4–40°C) protects thermally sensitive samples, while intelligent washing protocols minimize carryover to < 0.005%. Compatibility with 96- and 384-well plates and robotic arms makes it ideal for high-throughput screening and regulated environments (e.g., GMP compliance).

1.3 G1330B 1290 Thermostat: The "Guardian" of Detection Stability

Unlike conventional column compartments, the G1330B is specifically designed for detector temperature control, maintaining precise temperatures (4–90°C, ±0.1°C) for flow cells in DAD, RID, and other detectors. By eliminating ambient temperature fluctuations, it significantly enhances baseline stability, particularly in high-sensitivity detection applications (e.g., low-wavelength UV analysis), ensuring accurate quantification.

1.4 G1316A 1260 Column Compartment: The "Control Core" for Separation Reproducibility

Equipped with dual Peltier temperature control, the G1316A operates within a range of 10–85°C (expandable to -10–110°C) with ±0.15°C accuracy. Its six-port valve design supports column switching and backflushing, extending column lifespan. Active preheating technology ensures mobile phases reach the set temperature before entering the column, eliminating temperature gradients that affect retention time—critical for method transfer and multidimensional chromatography.

2. Integrated System Performance Highlights

2.1 Comprehensive Thermal Management Synergy

The G1316A Column Compartment and G1330B Thermostat form a complete thermal management system: the former ensures thermal stability during separation, while the latter maintains temperature consistency during detection. This synergy reduces retention time deviations to < 0.5%, outperforming single-temperature-control solutions, especially in pharmacopeia-compliant analyses.

2.2 Intelligent Method Transfer Capability

The system enables one-click method parameter conversion via Agilent OpenLAB CDS or ChemStation software. Smart alerts automatically identify compatibility issues between method conditions and hardware configurations (e.g., pressure limits, temperature ranges), reducing method transfer failures and enhancing laboratory efficiency.

2.3 Expandability and Compliance Design

The 1260 Infinity platform supports seamless integration of additional detectors (e.g., DAD, FLD, RID). All modules comply with 21 CFR Part 11 requirements, featuring full audit trails, electronic signatures, and role-based access control to meet stringent regulatory standards in pharmaceuticals and biologics.

3. Typical Applications

• Pharmaceutical Quality Control: The system’s high-precision gradient capability and thermal stability enable critical tasks such as API assay, impurity profiling, and dissolution testing, fully complying with USP/EP standards.

• Food Additive Testing: The quat pump’s precise low-pressure mixing is ideal for separating water-soluble components (e.g., sugars, preservatives, colorants). Combined with low-carryover injection, it ensures accurate quantification of trace compounds in complex food matrices.

• Life Science Research: The thermal management system preserves the integrity of biological samples (e.g., proteins, peptides), while low-dispersion flow paths maintain peak shape fidelity, supporting biomarker separation and metabolomics studies.

4. Conclusion

The Agilent 1260 Infinity HPLC System—configured with the G1311B Pump, G1329B Autosampler, G1330B Thermostat, and G1316A Column Compartment—delivers a synergistic combination of reproducibility, sensitivity, and automation. Its value lies not only in hardware excellence but also in providing end-to-end solutions from method development to compliant testing. The modular design caters to current analytical needs while allowing future expansions, solidifying its status as a timeless classic in HPLC technology.
