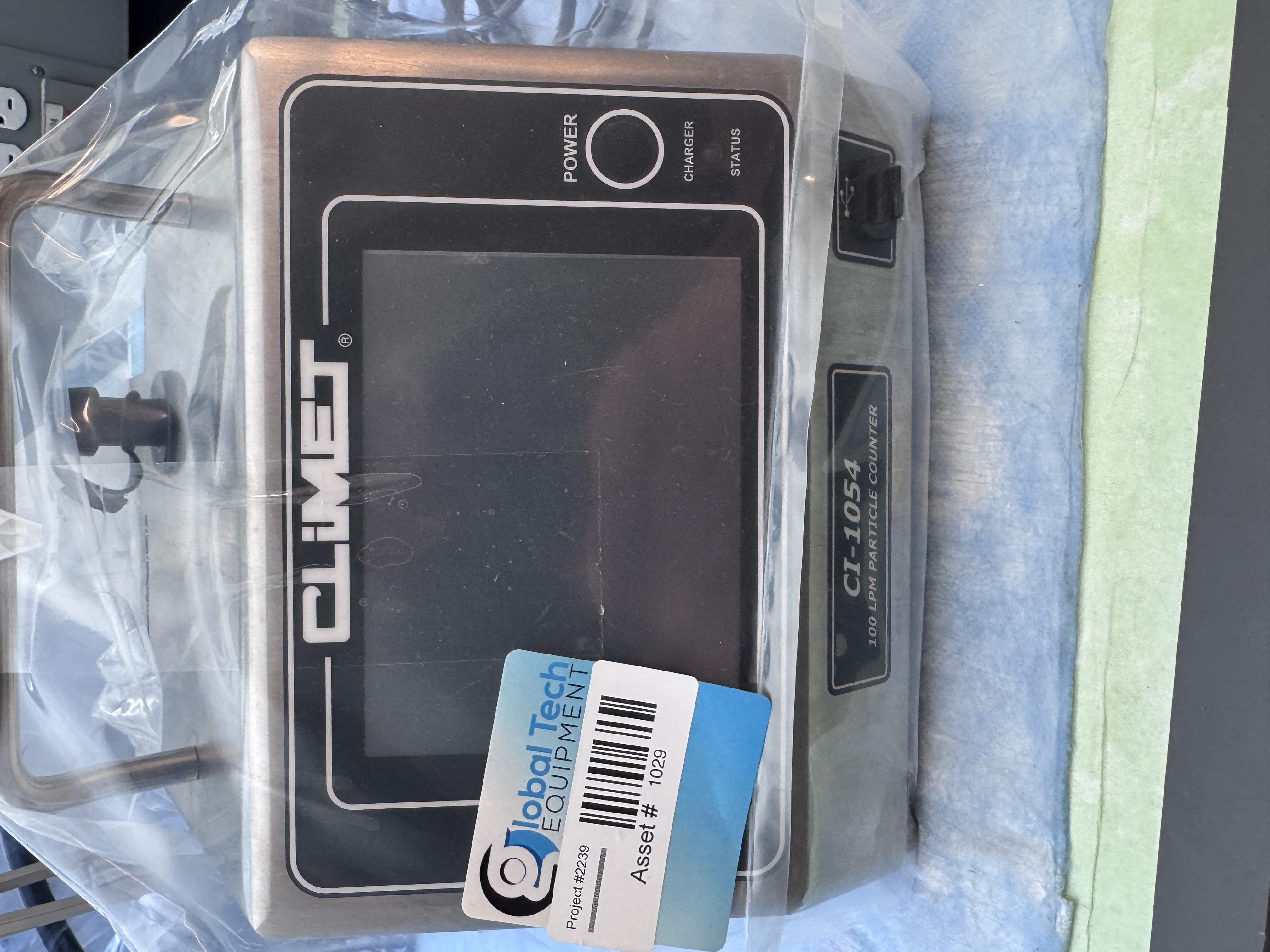

Climet CI-1054 100 LPM Particle Counter – Professional Overview

The Climet CI-1054 is a high-end particle counter from the CI-1050 series, manufactured by Climet Instruments Company (USA). Renowned for its 100 liters per minute (LPM) sampling flow rate, exceptional reliability, and advanced data connectivity, this instrument is a trusted choice for cleanroom monitoring across industries such as pharmaceuticals, medical devices, semiconductors, and biosafety.

1. Core Advantages & Design Philosophy

The CI-1054 embodies precision, durability, and efficiency in its design.

• Unmatched Reliability & Accuracy: Built with high-quality materials, the CI-1054 ensures long-term performance and decades of dependable operation. It undergoes rigorous calibration and testing, exceeding ISO 21501-4 standards. Internal audits show a >98% compliance rate for recalibration, with units maintaining high counting efficiency even after 10+ years of field use.

• Hygienic, Seamless Stainless Steel Housing: The seamless stainless steel enclosure simplifies cleaning and withstands sterilization methods like Vaporized Hydrogen Peroxide (VHP), making it ideal for GMP cleanrooms.

• Compact & Portable Design: Despite its 100 LPM flow rate, the CI-1054 is one of the most compact instruments in its class. Weighing just ~6.46 kg (with battery), it balances desktop-grade performance with portability.

2. Key Technical Specifications & Performance

The CI-1054 delivers professional-grade performance with:

• Sampling Flow Rate: A stable 100 LPM (0.1 m³/min), enabling 1 m³ sample collection in just 10 minutes—fully compliant with ISO 14644-1:2015.

• Particle Size Channels: Standard 0.5μm, 1.0μm, 3.0μm, and 5.0μm channels (customizable upon request). Counting efficiency, resolution (typically 4–10%), and maximum counting error (≤2.0 particles/m³ at 95% UCL for >0.5μm) adhere to ISO 21501-4.

• Optical System: Features rhodium-coated metal ellipsoidal mirrors for durability and contamination resistance, paired with a long-life laser diode for stable, high-resolution measurements.

• Flow Control & Exhaust: Uses closed-loop electronic control for consistent flow stability. All models include an ISO Class 3-certified HEPA exhaust filter to prevent contamination of clean environments.

3. Model-Specific Features: Advanced Data Connectivity

The CI-1054 excels in flexible data communication, making it ideal for modern labs and industrial facilities:

• RS-232 Serial Port: Standard for basic data transfer.

• Ethernet (LAN): Supports HTTP web server, Modbus, and TELNET protocols for remote monitoring, data logging, and device management.

• USB Port: Enables data export, firmware updates, and "cloning"—allowing quick transfer of programs, settings, and data between devices or to a PC.

4. System Features & User Experience

• Robust Data Management: Stores up to 3,000 samples (including date, time, particle counts, and flow rate). Users can create 30 sampling programs, each supporting 100 location IDs—ideal for multi-point monitoring.

• Four-Level User Access: Offers admin and up to 20 user accounts with 4-tier security, ensuring compliance with 21 CFR Part 11 (electronic signatures & data integrity).

• Integrated Thermal Printer: Prints on-site reports with Pass/Fail status based on EU GMP Annex 1 and ISO 14644-1.

• Long-Lasting Battery: A 9.6V rechargeable battery provides 3.5 hours of continuous sampling, with a 3.5–4-hour charging time.

5. Applications

The CI-1054 is widely used in critical environments, including:

• Pharmaceuticals & Biotech: Sterile manufacturing, vaccine production, filling line monitoring.

• Medical Devices: Implants, sterile device production.

• Healthcare: Operating rooms, ICUs, biosafety cabinets.

• Semiconductors & Electronics: Cleanroom monitoring in chip fabrication.

• R&D: Laboratory environmental testing.

• Food, Beverage & Cosmetics: High-cleanliness production areas.

Conclusion

The Climet CI-1054 is more than a particle counter—it is a high-performance, durable, and compliance-ready solution for modern cleanroom monitoring. With superior data connectivity, regulatory compliance (ISO/GMP), and decades-long reliability, it ensures product quality, safety, and operational efficiency. Its longevity and ROI make it a wise investment for industries demanding precision and dependability.
