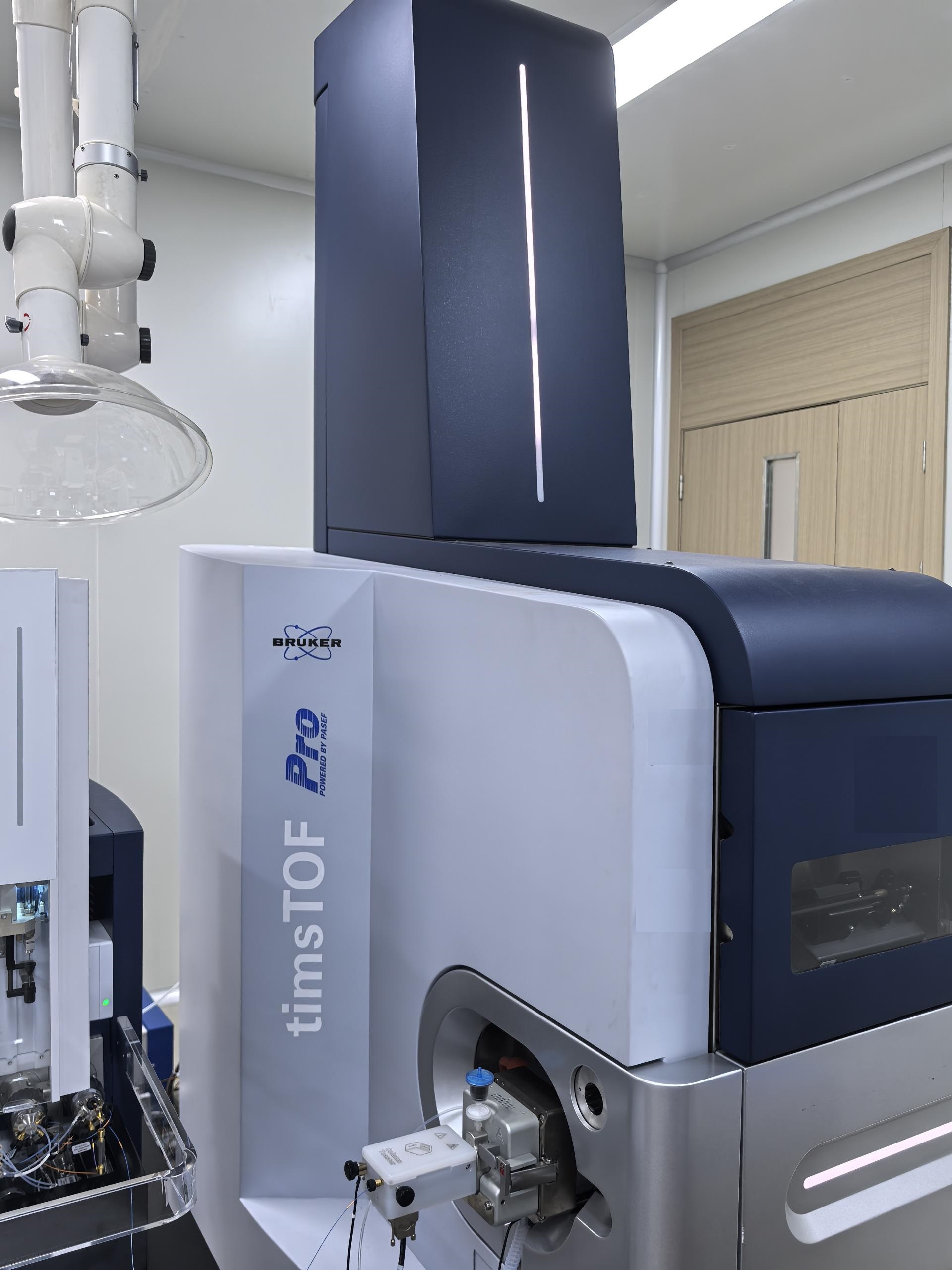

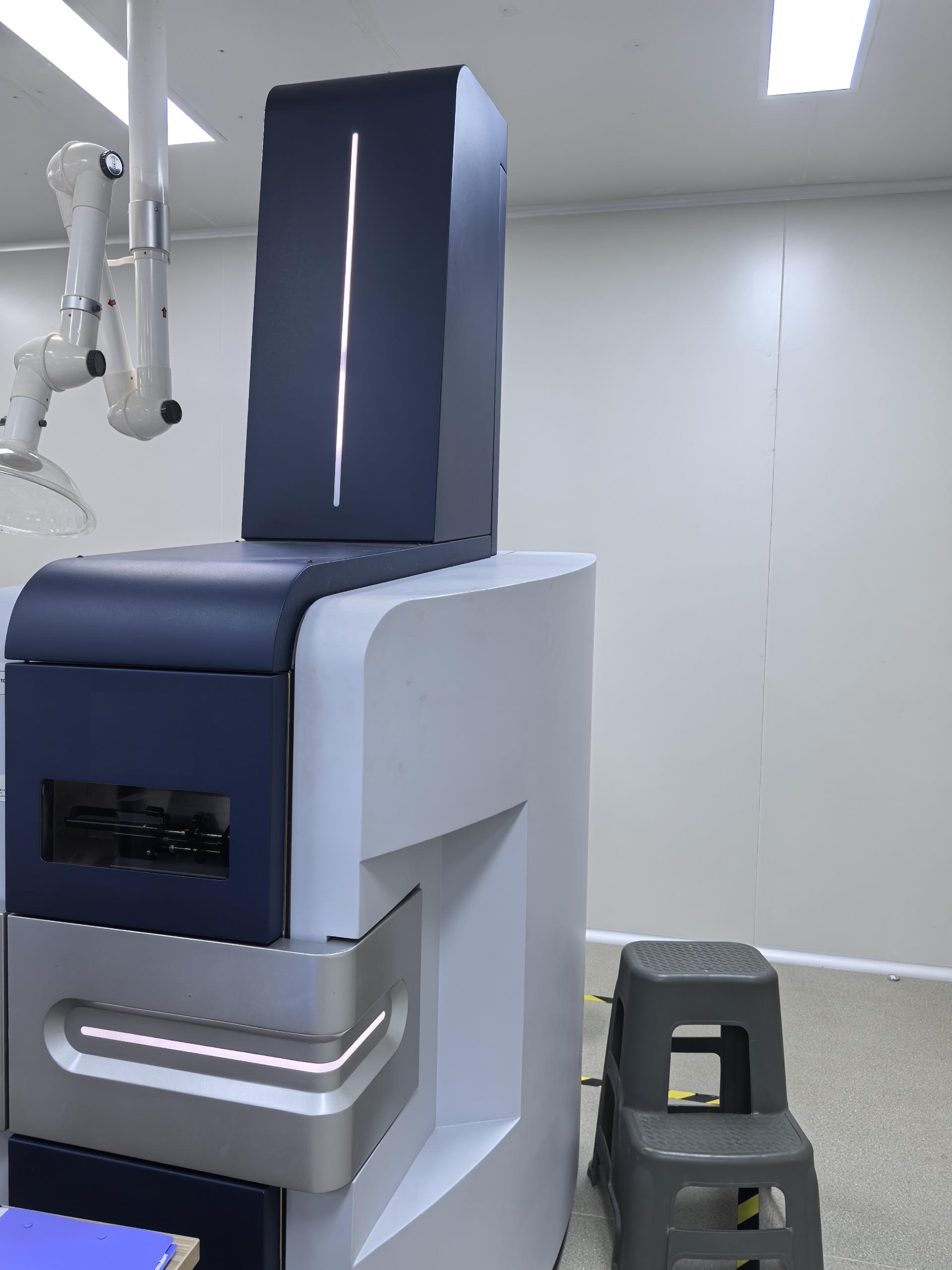

Bruker timsTOF Pro High-Resolution Trapped Ion Mobility Spectrometry Time-of-Flight Mass Spectrometer: A Comprehensive Introduction

The Bruker timsTOF Pro high-resolution trapped ion mobility spectrometry time-of-flight mass spectrometer is a revolutionary analytical platform developed by Bruker Daltonics, representing the cutting edge of current ion mobility mass spectrometry technology. This instrument innovatively combines trapped ion mobility separation (TIMS) technology with time-of-flight mass spectrometry (TOF MS), providing unprecedented analytical capabilities for proteomics, metabolomics, structural biology, and clinical research.

Technical Principles and Core Advantages

The technological breakthrough of timsTOF Pro lies in its dual TIMS analyzer design and parallel accumulation serial fragmentation (PASEF) technology. Compared with conventional ion mobility techniques, TIMS technology achieves ion separation through electric field and gas flow balance, offering higher resolution and flexibility. Key technical features include:

• Ultra-high resolution: Ion mobility resolution up to R=100-250, mass resolution >60,000 FWHM (m/z 1222), mass accuracy <1 ppm RMS

• Ultra-high sensitivity: Utilizes fourth-generation dual-stage ion funnel and efficient ion transfer system, sensitivity improved by 5-10 times compared to conventional TOF

• Ultra-fast scanning speed: MS/MS acquisition rate up to 200 Hz in PASEF mode, enabling identification of over 10,000 proteins in a single LC-MS/MS run

• Four-dimensional separation: Combines retention time (LC), ion mobility (IM), mass-to-charge ratio (m/z), and fragment ion information to provide cleaner mass spectra

Innovative Design and Technological Breakthroughs

timsTOF Pro incorporates several revolutionary innovations in ion optics and instrument architecture:

1. Dual TIMS analyzer design:

   • Front TIMS for ion accumulation and cooling

   • Rear TIMS for high-resolution separation

   • Independent control of both sections for optimal separation

2. PASEF technology:

   • Parallel accumulation: Front TIMS simultaneously accumulates multiple groups of ions with different mobilities

   • Serial fragmentation: Ions separated by rear TIMS continuously enter collision cell for fragmentation

   • Sensitivity improved by more than 10 times compared to conventional DDA mode

3. Intelligent ion gating system:

   • Dynamically adjusts gating timing based on ion mobility

   • Maximizes ion utilization and minimizes signal loss

4. Novel collision cell design:

   • Features segmented RF field design

   • Adjustable collision energy range (0-99 eV)

   • Supports both CID and ETD fragmentation modes

Application Performance and Workflows

timsTOF Pro demonstrates outstanding performance across multiple application fields:

Deep Proteome Coverage

• Single LC-MS/MS analysis (60 min gradient) can identify:

  • Human cell lines: >10,000 proteins

  • Yeast proteome: >4,000 proteins

  • Single DIA acquisition can quantify >8,000 proteins

• Post-translational modification analysis:

  • 30,000 phosphorylation sites identified in single run

  • Simultaneous analysis of multiple PTMs (acetylation, ubiquitination, etc.)

Metabolomics and Lipidomics

• Ion mobility separation significantly improves isomer resolution

• Database matching confidence improved by 3-5 times

• Metabolite detection down to amol level

Structural Biology Research

• Collision cross section (CCS) measurement accuracy <1%

• Can distinguish protein complexes with only 2% spatial conformation difference

• Supports native mass spectrometry analysis, preserving biomolecular higher-order structures

Clinical and Translational Medicine

• Deep plasma/serum proteome coverage (>1,000 proteins)

• Low-abundance biomarker detection sensitivity improved by 10 times

• Supports high-throughput analysis of large cohort samples

Intelligent Systems and User Experience

timsTOF Pro features modular design with intelligent control systems:

1. Automated workflows:

   • One-click method development

   • Automatic optimization of ion mobility and MS parameters

   • Real-time system status monitoring

2. Data processing system:

   • Dedicated DIA-NN software for DIA data processing

   • MaxQuant compatible with PASEF data

   • Supports third-party analysis tools like Skyline

3. Maintenance convenience:

   • Modular design for quick replacement of key components

   • Intelligent diagnostic system for early problem detection

   • Mean time between failures >5,000 hours

Technical Comparison and Market Positioning

Compared to conventional Q-TOF and Orbitrap platforms, timsTOF Pro offers unique advantages:

Representative Application Cases

1. Single-cell proteomics:

   • Utilizing nanoPOTS sample preparation

   • 1,000 proteins identified from single HeLa cell

   • Revealing cellular heterogeneity

2. COVID-19 research:

   • Plasma proteome analysis for prognostic biomarkers

   • Virus-host protein interaction studies

   • Drug mechanism elucidation

3. Cancer biomarker discovery:

   • Early-stage liver cancer diagnostic marker screening

   • Large cohort analysis of tissue/body fluid samples

   • Low-abundance protein detection sensitivity at ng/mL level

Summary and Outlook

The Bruker timsTOF Pro has redefined the standards for high-throughput, high-sensitivity mass spectrometry analysis through its innovative TIMS technology and PASEF acquisition mode. Its four-dimensional separation capability provides novel solutions for complex sample analysis, particularly suitable for:

• Ultra-deep proteomics research

• Clinical translational medicine and large cohort analysis

• Structural biology and interaction studies

• Metabolic flux and dynamic process monitoring

With the emergence of cutting-edge fields like single-cell omics and spatial omics, timsTOF Pro will continue to leverage its unique technological advantages, propelling life science research into new dimensions. Future integration with artificial intelligence technologies promises even more intelligent data acquisition and analysis, providing more powerful tools for precision medicine and systems biology research.
