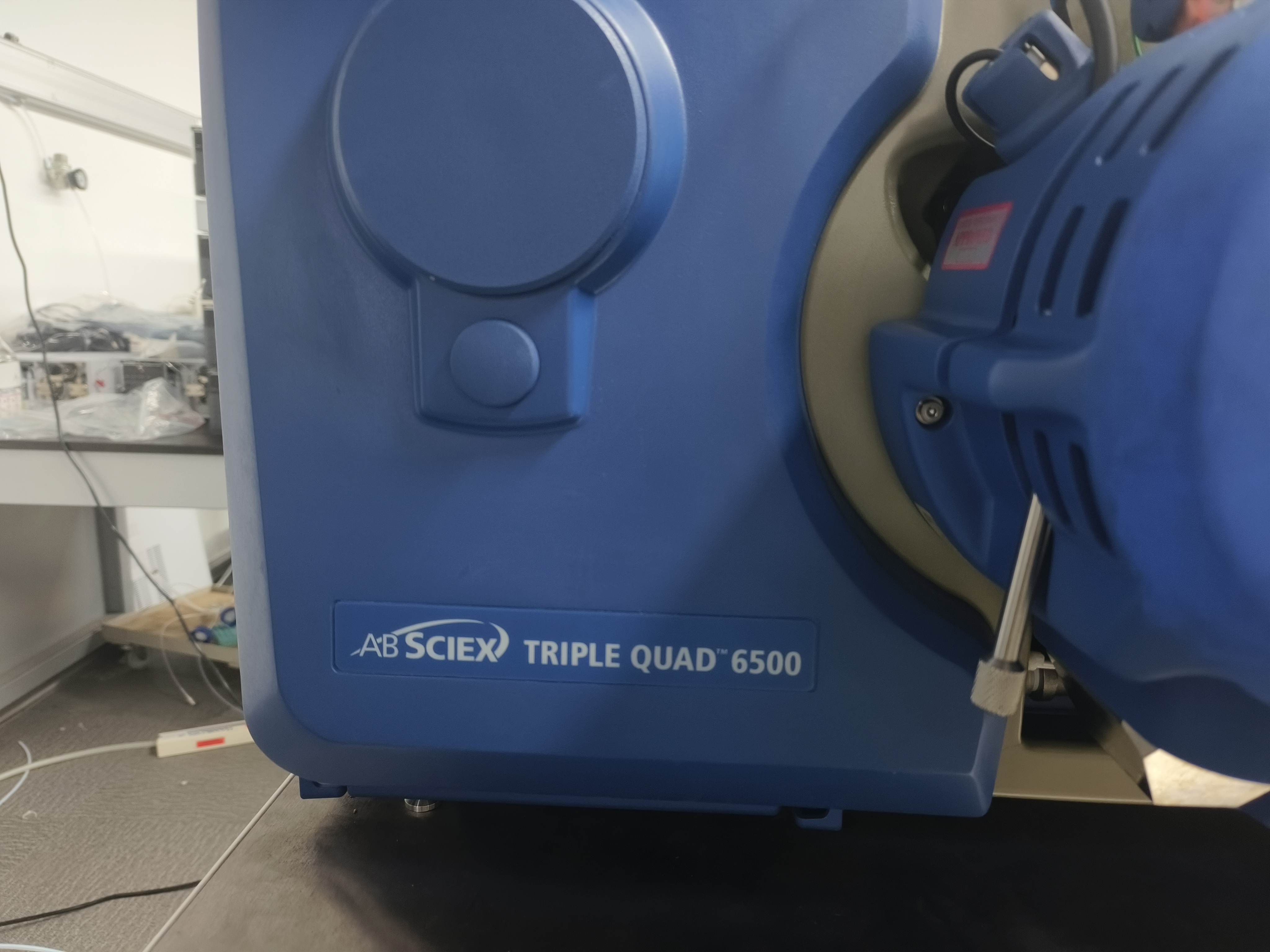

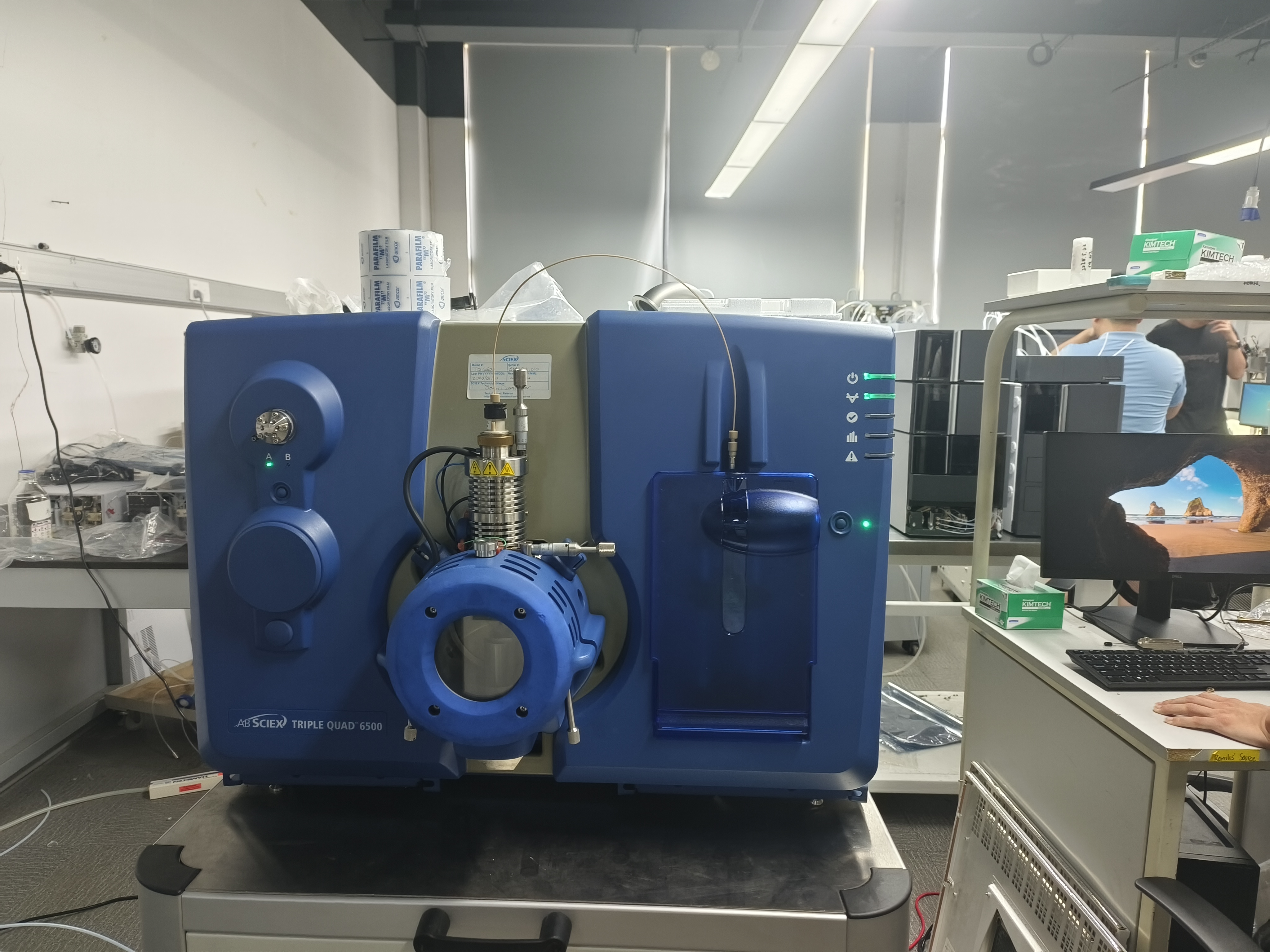

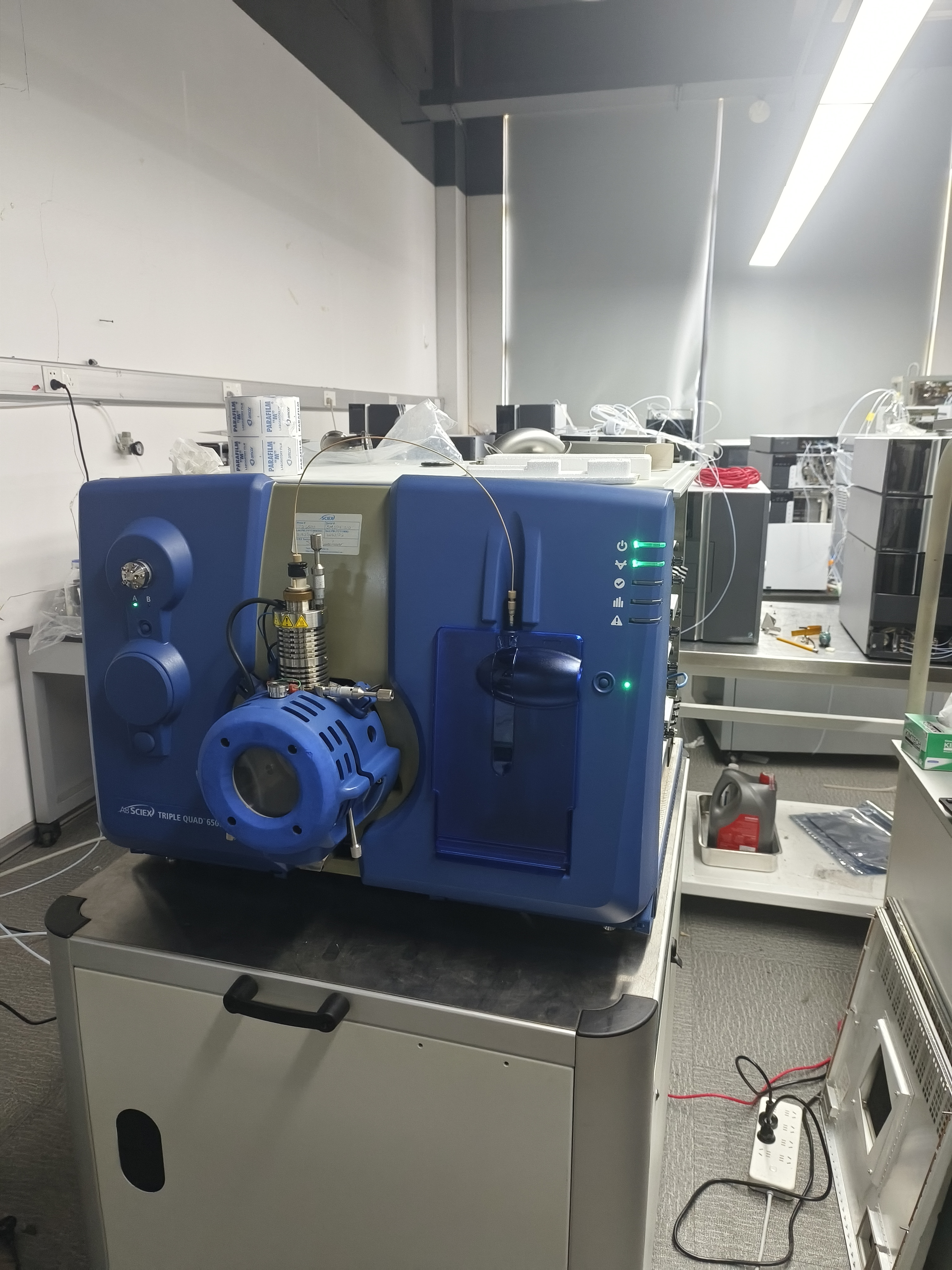

AB SCIEX QTRAP 6500+ Triple Quadrupole LC-MS/MS System: A Revolutionary Platform for Quantitative and Qualitative Analysis

The AB SCIEX QTRAP 6500+ is a high-end triple quadrupole liquid chromatography-tandem mass spectrometry (LC-MS/MS) system developed by SCIEX. It uniquely combines the quantitative capabilities of a triple quadrupole with the qualitative functionality of a linear ion trap, making it a benchmark instrument for trace compound analysis in complex matrices. Its innovative design caters to a wide range of applications, from basic research to clinical diagnostics. Below is a detailed introduction covering its core technologies, application fields, and industry advantages.

I. Core Technical Features

1. Unique QTRAP Technology

   The QTRAP 6500+ integrates triple quadrupole (Triple Quad) and linear ion trap (Linear Ion Trap) technologies, supporting both Multiple Reaction Monitoring (MRM) and Ion Trap Scanning (MS/MS) modes. This design retains the high-sensitivity quantitative capability of MRM (with detection limits reaching femtogram levels) while enabling structural elucidation through ion trap scanning, achieving "dual analysis in a single injection."

2. Exceptional Sensitivity and Dynamic Range

   The system employs IonDrive™ Technology, including the Turbo V ion source, QJet ion guide, and high-efficiency detector, significantly improving ionization efficiency and ion transmission. Its dynamic range spans six orders of magnitude, allowing simultaneous detection of trace-level substances (e.g., hormones) and high-concentration metabolites in complex matrices without dilution or repeated injections.

3. High-Speed Scanning and Interference Resistance

   • Scanning speeds of up to 20,000 Da/sec, compatible with ultra-high-performance liquid chromatography (UHPLC) for rapid gradient separation, enhancing throughput.

   • SelexION+ Differential Mobility Spectrometry (DMS) separates isomeric compounds based on ion mobility differences, reducing co-elution interference and improving selectivity.

   • MRM3 Scan Mode further eliminates background noise through third-stage mass spectrometry, enabling highly selective quantification in complex biological samples (e.g., plasma, tissues).

4. Intelligent Software and Compliance

   Equipped with SCIEX OS Software, the system supports automated method development, multi-component parallel analysis, and compliance report generation, meeting regulatory requirements such as FDA 21 CFR Part 11, making it ideal for GLP/GMP environments.

II. Application Fields

1. Metabolomics and Biomarker Research

   • Targeted Metabolomics: Precise quantification of small molecules such as amino acids, bile acids, and neurotransmitters for disease mechanism studies (e.g., cancer, Alzheimer’s disease).

   • Broad-Spectrum Metabolomics: Combined with extensive databases (e.g., 50,000+ metabolites), enabling high-throughput screening and accurate quantification.

2. Drug Development and Toxicology

   • DMPK/ADME Studies: Evaluating pharmacokinetic properties and detecting low-concentration metabolites.

   • Biopharmaceutical Analysis: Purity and stability assessment of antibody-drug conjugates (ADCs).

3. Food Safety and Environmental Monitoring

   • Pesticide and Veterinary Drug Residues: Compliant with EU SANTE standards, capable of simultaneously analyzing 208 pesticide residues.

   • Persistent Organic Pollutants (PFOS/PFOA): Detection limits at ppt levels, meeting environmental toxicology research needs.

4. Clinical Diagnostics and Forensic Science

   • Newborn Screening: Rapid quantification of metabolites in dried blood spots.

   • Toxicology Screening: High-sensitivity detection of abused drugs (e.g., opioids) in blood/urine.

III. Industry Competitive Advantages

1. Technical Compatibility and Scalability

   Method compatibility with previous SCIEX models (e.g., 5500, 4500), supporting modular upgrades (e.g., switching ion sources to APCI or APPI) for diverse analyses from small molecules to macromolecules.

2. Stability and Reliability

   The patented QJet ion guide system minimizes contamination, with <3% RSD during 72-hour continuous operation, ideal for high-throughput laboratories.

3. Global Support Network

   SCIEX provides technical support and training services in over 100 countries, including remote diagnostics and on-site maintenance.

4. Sustainable Design

   Compatible with nitrogen generators, reducing liquid nitrogen consumption by 90% and lowering operational costs, aligning with green laboratory initiatives.

Conclusion

The AB SCIEX QTRAP 6500+ overcomes the limitations of traditional triple quadrupole systems in complex sample analysis through its "quantitative + qualitative" integrated technology, making it the preferred platform for metabolomics, pharmaceuticals, food safety, and more. Its ultra-high sensitivity, interference resistance, and intelligent workflows not only enhance data reliability but also significantly reduce analysis time. With growing demands in precision medicine and environmental monitoring, this system will continue to push the boundaries of scientific research and industrial applications.
