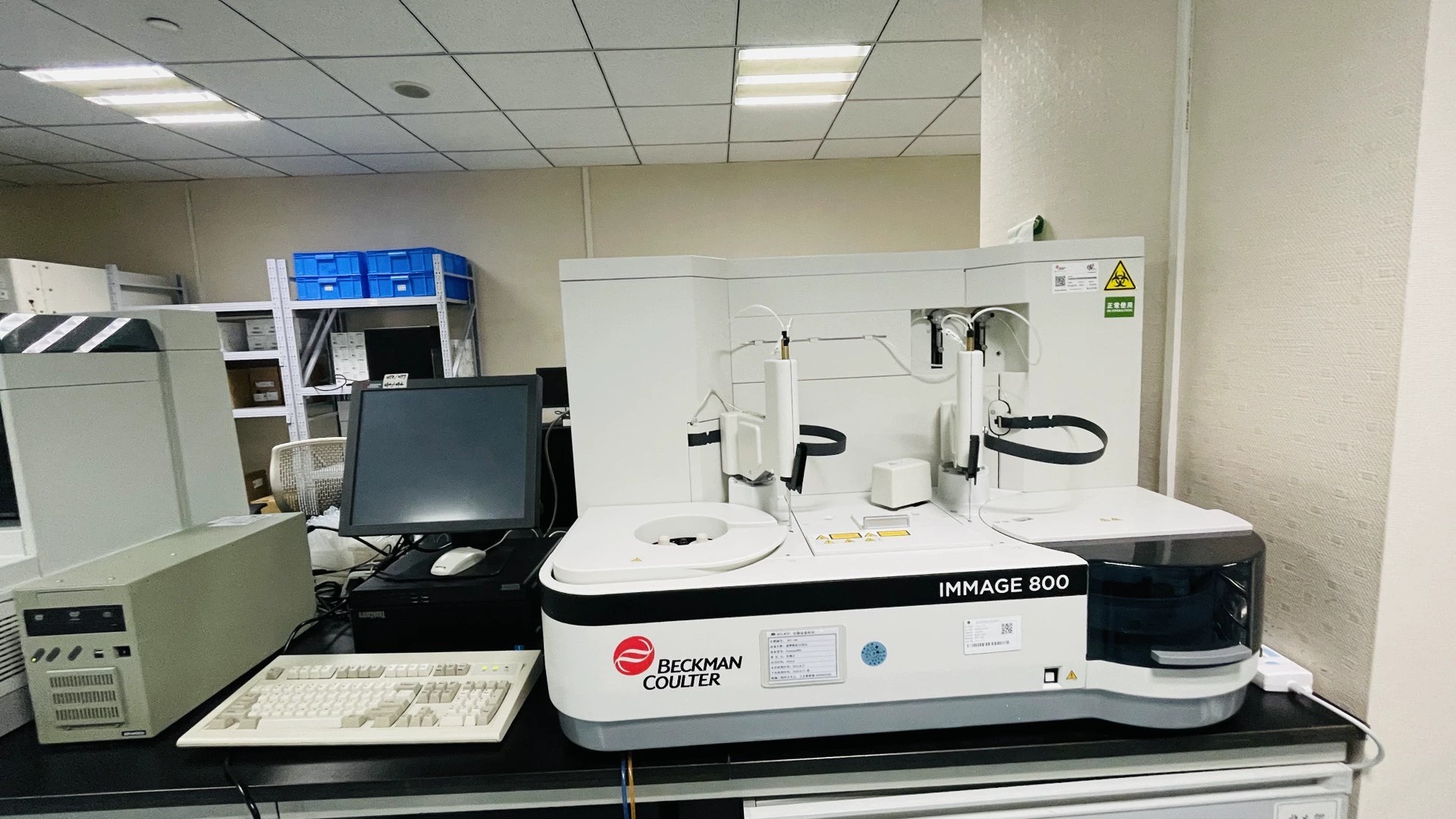

Beckman Coulter IMMAGE 800 Specific Protein Analyzer Introduction

The Beckman Coulter IMMAGE 800 is a fully automated specific protein analysis system that utilizes dual-optical path detection technology (670nm laser and 940nm near-infrared light), combining rate nephelometry and near-infrared particle rate turbidimetry to provide high-precision specific protein testing solutions for clinical laboratories.

Core Features

• Testing Speed: 180 tests/hour
• Sample Handling: 72 sample positions, 24 refrigerated reagent positions
• Detection Methods: Supports four methods including nephelometry, inhibition nephelometry, turbidimetry, and inhibition turbidimetry
• Test Menu: Covers over 40 clinical indicators including immunoglobulins, complements, inflammatory markers, and cardiovascular markers

Technical Advantages

The system employs full-process kinetic blank control technology with automatic antigen excess monitoring to effectively prevent false-negative results. All calibrators are traceable to international standards such as IFCC and BCR, ensuring result comparability. The innovative pierceable reagent cap design simplifies workflow, with opened reagent stability lasting up to 24 months.

Clinical Applications

IMMAGE 800 is widely used for:

• Immune system disease diagnosis (IgA/IgG/IgM)
• Cardiovascular risk assessment (hs-CRP, apolipoproteins)
• Renal function monitoring (urinary microalbumin)
• Neurological disease diagnosis (CSF proteins)

Operational Advantages

The system features a touchscreen interface and supports full barcode management. With 50 user-defined channels for research needs and multi-point calibration curves valid for 30 days, it significantly reduces operational costs. Daily maintenance requires only 1 minute, greatly improving laboratory efficiency.

With its reliable performance and user-friendly operation, the IMMAGE 800 has become the preferred equipment for clinical specific protein testing, particularly suitable for medium-to-large hospital laboratories and reference laboratories.
