Comprehensive Analysis of Waters Xevo TQD Triple Quadrupole LC/MS/MS System

The Waters Xevo TQD triple quadrupole liquid chromatography-tandem mass spectrometry (LC/MS/MS) system is a high-performance detection platform specifically designed for routine quantitative analysis. It perfectly combines the exceptional separation capability of ultra-performance liquid chromatography (UPLC) with the high sensitivity and selectivity of tandem mass spectrometry. Renowned for its stability, reliability, and user-friendliness, this system is widely used in pharmaceuticals, clinical research, food safety, and environmental monitoring.

Core Design and Technical Features

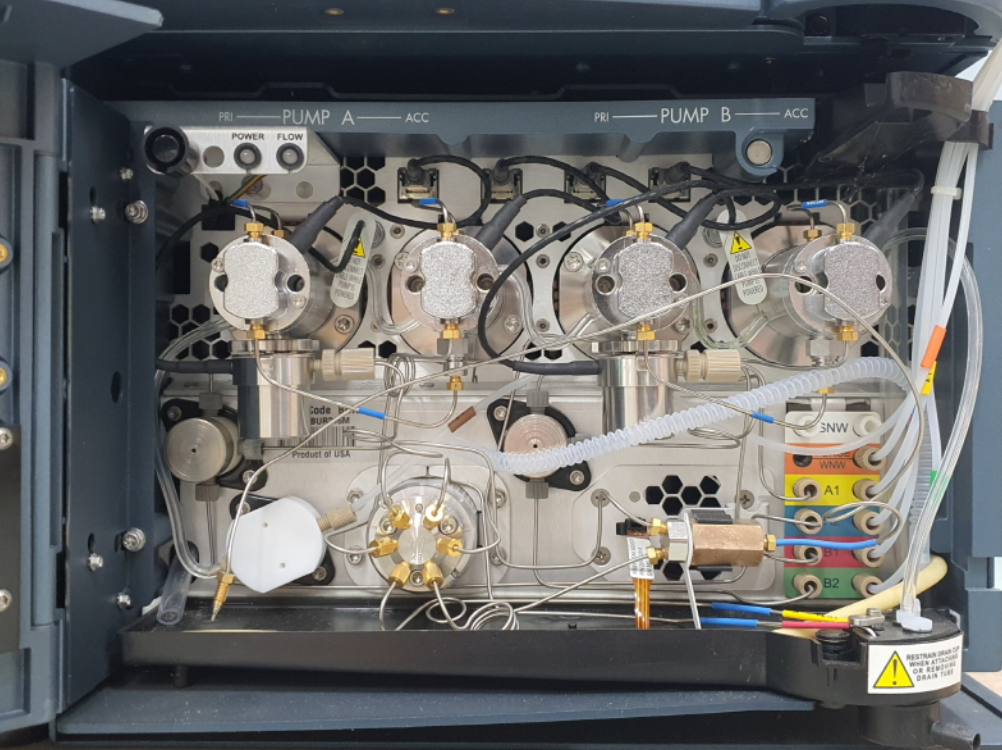

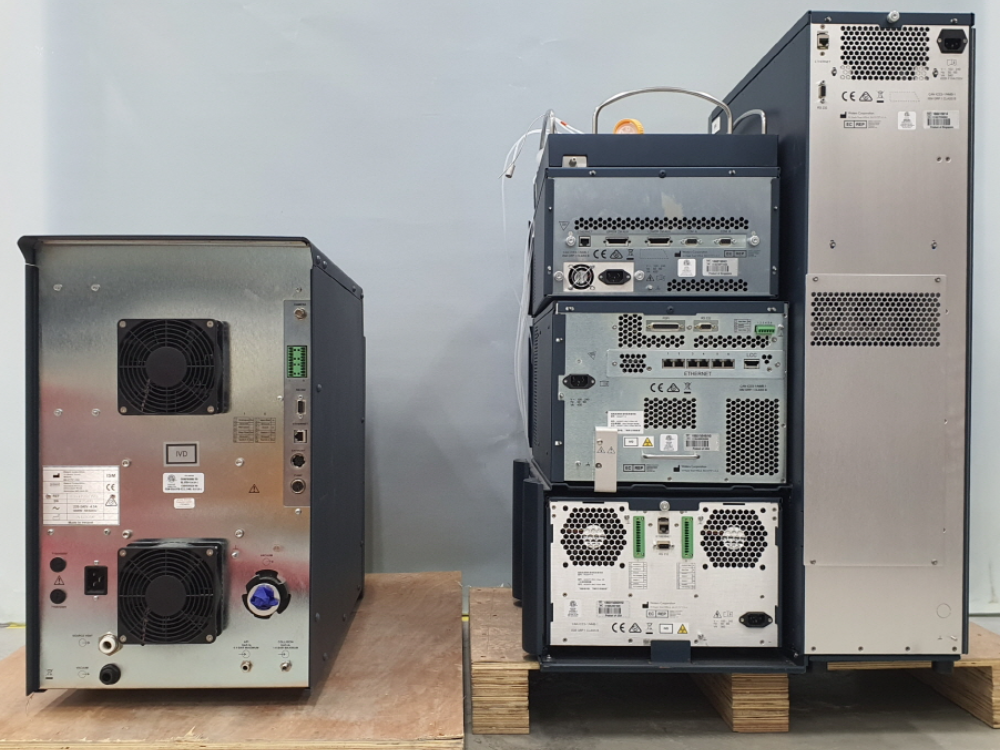

The Xevo TQD adopts a modular design, primarily consisting of an ACQUITY UPLC system and a triple quadrupole mass spectrometer. Its unique "dual-piston serial pump" design, combined with digitally controlled linear drive technology, delivers pulse-free solvent flow with a flow rate precision of <0.075% RSD. The mass spectrometer features the ZSpray™ dual orthogonal atmospheric pressure ionization (API) source, supporting multiple ionization modes such as ESI, APCI, and ESCi, and can be expanded with specialized ion sources like nanoFlow ESI and APGC to meet the analysis needs of various compounds.

The system's innovative T-Wave collision cell technology delivers optimal MS/MS performance even at high data acquisition rates, enabling accurate quantification of narrow peaks (2-3 seconds) generated by UPLC. The photomultiplier tube detector features low noise, an off-axis design, and a digital dynamic range of up to 4×10⁶, ensuring high-sensitivity detection. The vacuum system employs a split-flow turbomolecular pump combined with a rotary primary pump, ensuring long-term operational stability.

Intelligent Operation and Data Analysis

The Xevo TQD is equipped with Waters' MassLynx™ software platform, providing comprehensive system control and data processing capabilities. Its RADAR™ technology revolutionizes method development by simultaneously acquiring quantitative and qualitative data, visually displaying complete sample information to help identify matrix interferences, metabolites, and degradation products. IntelliStart and Quanpedia features enable automatic system setup and checks while generating all MRM channels, significantly simplifying method development.

During operation, QCMonitor tracks data quality in real time and issues alerts when preset limits are exceeded; TargetLynx automates quantitative analysis and report generation; and TrendPlot provides multi-cycle result trend analysis for long-term performance evaluation. These intelligent tools collectively ensure the accuracy and reliability of analytical results, particularly meeting the requirements of GLP/GMP-compliant laboratories.

Outstanding Performance and Broad Applications

The Xevo TQD excels in multiple key performance metrics: it offers a wide mass range, high resolution, and sensitivity down to sub-pg/mL levels. The system supports flow rates up to 10 mL/min and operating pressures of 34.5 MPa (5000 psi), accommodating needs ranging from routine analysis to semi-preparative applications. Its exceptional stability maximizes instrument uptime while maintaining high consistency across different analyses and instruments.

In the pharmaceutical industry, the system is used for drug metabolism studies, clinical testing, and quality control analysis. In food safety, it detects pesticide residues and illegal additives. For environmental monitoring, it analyzes trace organic pollutants in water. Clinical laboratories particularly value its ability to detect drugs and their metabolites in urine and blood, such as opioids and amphetamines. The system can also significantly reduce analysis time through method optimization—for example, cutting analysis time in half compared to traditional HPLC methods for drinking water testing.

Service Support and System Advantages

Waters provides comprehensive after-sales service for the Xevo TQD, including a one-year warranty (extendable), 48-hour response for repairs, and a three-month free warranty commitment. The system's compact dimensions (35.6 × 60 × 93 cm) facilitate laboratory installation. Its streamlined engineering design philosophy significantly reduces the complexity of mass spectrometry analysis, enabling researchers to achieve maximum productivity with minimal effort.

The Xevo TQD represents Waters' technological excellence in the field of quantitative LC-MS/MS, combining stability, sensitivity, and intelligence to deliver an efficient and reliable analytical solution for laboratories. With continuous technological upgrades, the system continues to expand its application boundaries, helping scientists tackle increasingly complex analytical challenges.
